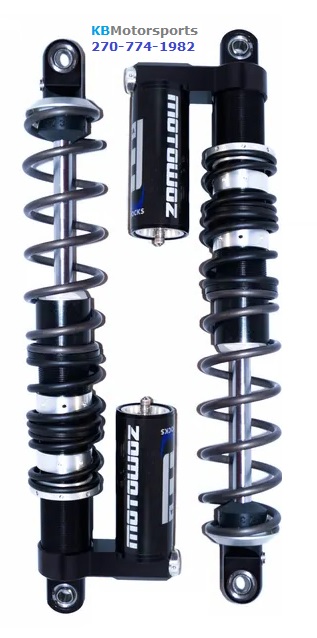

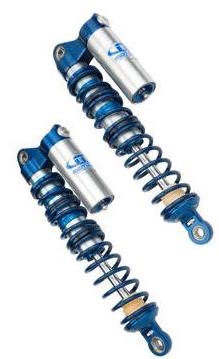

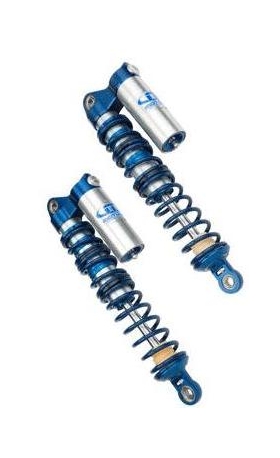

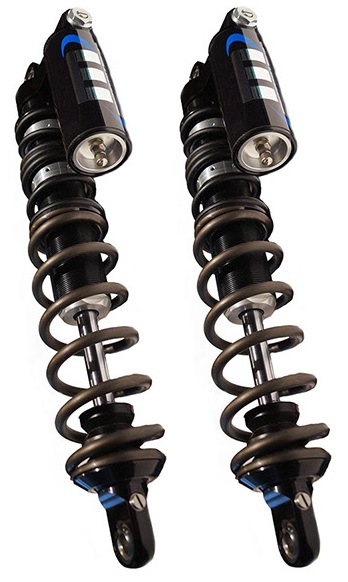

The aircraft quality aluminum billet parts are used throughout each MOTOWOZ shock. High-quality material and precision manufacturing makes MOTOWOZ components incredibly strong compared to some competitors’ stamped or casted parts.Valving is one of the most critical aspects of ATV shock set-up, and Motowoz has developed a unique “velocity sensitive valving,” or VSV system. Using the latest in CAD design software, Motowoz designers developed a piston that has proven to offer a superior performance. Each piston is CNC machined from a solid piece of aircraft aluminum. The piston is then hard anodized for durability, and fitted with precision stamped valve discs. The valve discs used on each piston are specific to a rider’s weight, bike set-up, and riding style. Motwoz valving will react differently to every type of impact the ATV receives. The valves open instantly for fast, big hits, but remain virtually closed on small or slow impacts. This is the effect of VSV technology—only offered through Motowoz

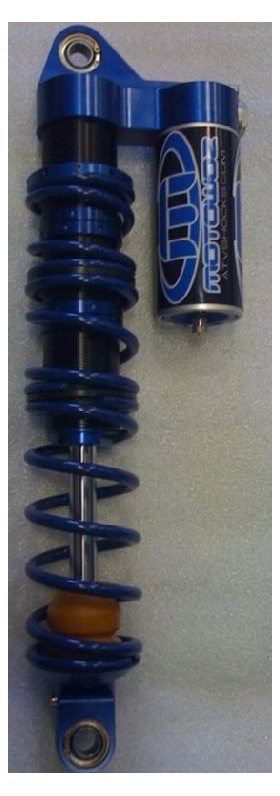

The shock bodies begin with high-quality, honed hydraulic cylinder tubing that is CNC machined. The bodies are then polished and plated for a superior look and full protection from the elements.The fully threaded bodies allow for infinite adjustability, while also utilizing “Stub Acme” threads, which are very resilient to damage.
Motowoz utilizes heavy-duty, alloy over-sized shafts of 5/8 of an inch. All shafts are ground and hard chromed to military specifications. This type of plating is extremely durable and provides a smooth surface for the seals to ride on—extending the life of the seal.
Motowoz, one of the only companies to offer adjustable cross-over rings. This feature allows you to make adjustments without having to remove the shock from the ATV or remove the spring from the shock.The Motowoz way of doing this only takes a few minutes and gives the racer the ultimate in adjustability without being a time consuming process.
Features:
- Utilizes two different types of shaft seals protected by a third seal that acts as a scraper to shield the sealing surfaces.
- Fade-free and consistent.
- Compression and Rebound adjusters will make noticeable internal adjustments.
- Adjustable Cross over rings
- Velocity Sensitive Valving
