KFI Stealth Winch

KFI STEALTH WINCH LINE UP:

The KFI Stealth Series is our line of Synthetic Cabled Winches ranging from 2500lbs to 4500lbs. Each KFI Stealth Winch Kit features wuality cast aluminum and durable steel components, Stealthed out with a full complement of accessories including Smoke Colored Synthetic Cable, Cable Hook Stopper (#ATV-CHS), Premimum Black Roller Fairlead, fairlead bracket for mounting to trailers or other non-ATV applications, Handlebar Mini-Rocker Switch, 14' corded hand-held remote on the SE35 and SE45, black plated hardware to mount your winch to a model specific ATV/UTV winch mount, a Heavy Duty Electric Contactor that protects the electrical sustem, all required wiring and detailed installation instructions. An ATV/UTV model specific winch mount must be purchased separately. They are aso backed by a KFI 1-Year Limited Warranty.

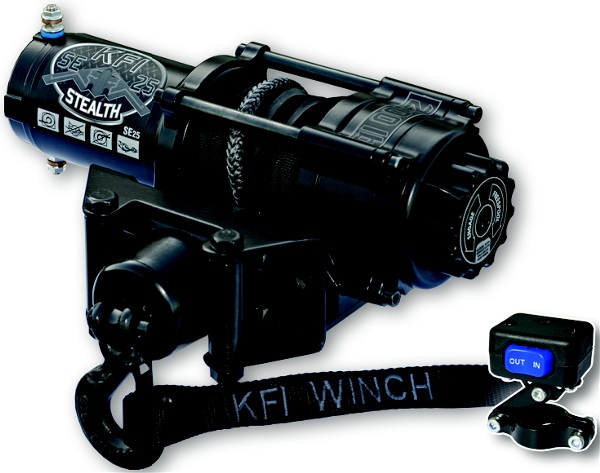

SE25:

This 2500lb ATV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy-duty all metal turn clutch

• Rated Line Pull: 2500 lbs
• Motor: 12V DC, 1.2hp permanent magnet
• Gear Ratio: 171:1
• Synthetic Cable: 3/16"D x 50'L (Smoke Color)
• Winch Dimensions: 12.67"L x 4.06"D x 4.2"H
• Mounting Bolt Pattern:3.00" x 4.875" (4-Hole)
• Winch Weight:22.7lbs
• Cable Hook Stopper Included (10-0110)

SE35:

This 3500lb ATV/UTV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy-duty all metal turn clutch

• Rated Line Pull: 3500lbs
• Motor: 12V DC, 1.5hp permanent magnet
• Gear Ratio: 171:1
• Synthetic Cable: 3/16"D x 50'L (Smoke Color)
• Winch Dimensions: 12.97"L x 4.06"D x 4.2"H
• Mounting Bolt Pattern:3.00" x 4.875" (4-hole)
• Winch Weight: 24.5lbs
• Cable Hook Stopper Included (10-0110)
• Hand-held remote included

SE45:

This 4500lb UTV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic, mechanical and drum braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy-duty all metal turn clutch.

• Rated Line Pull:4500lbs
• Motor: 12V DC, 1.7hp permanent magnet
• Gear Ratio:166:1
• Synthetic Cable: 15/64"D x 38'L (Smoke Color)
• Winch DimensionsL 14.6"L x 4.55"D x 4.82"H
• Mounting Bolt Pattern: 3.00" x 4.875" (4-hole)
• Winch Weight:32lbs
• Cable Hook Stopper Included (10-0110)
• Hand-held remote included
